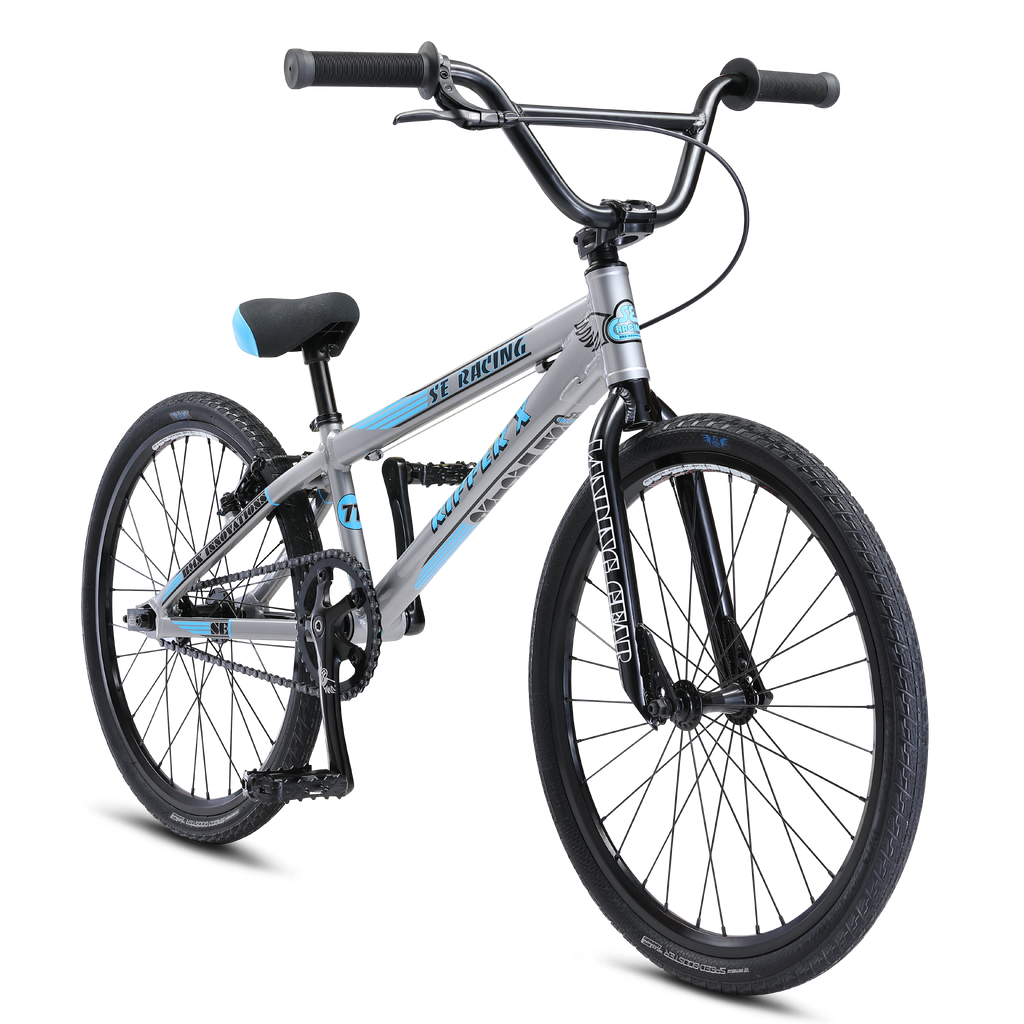

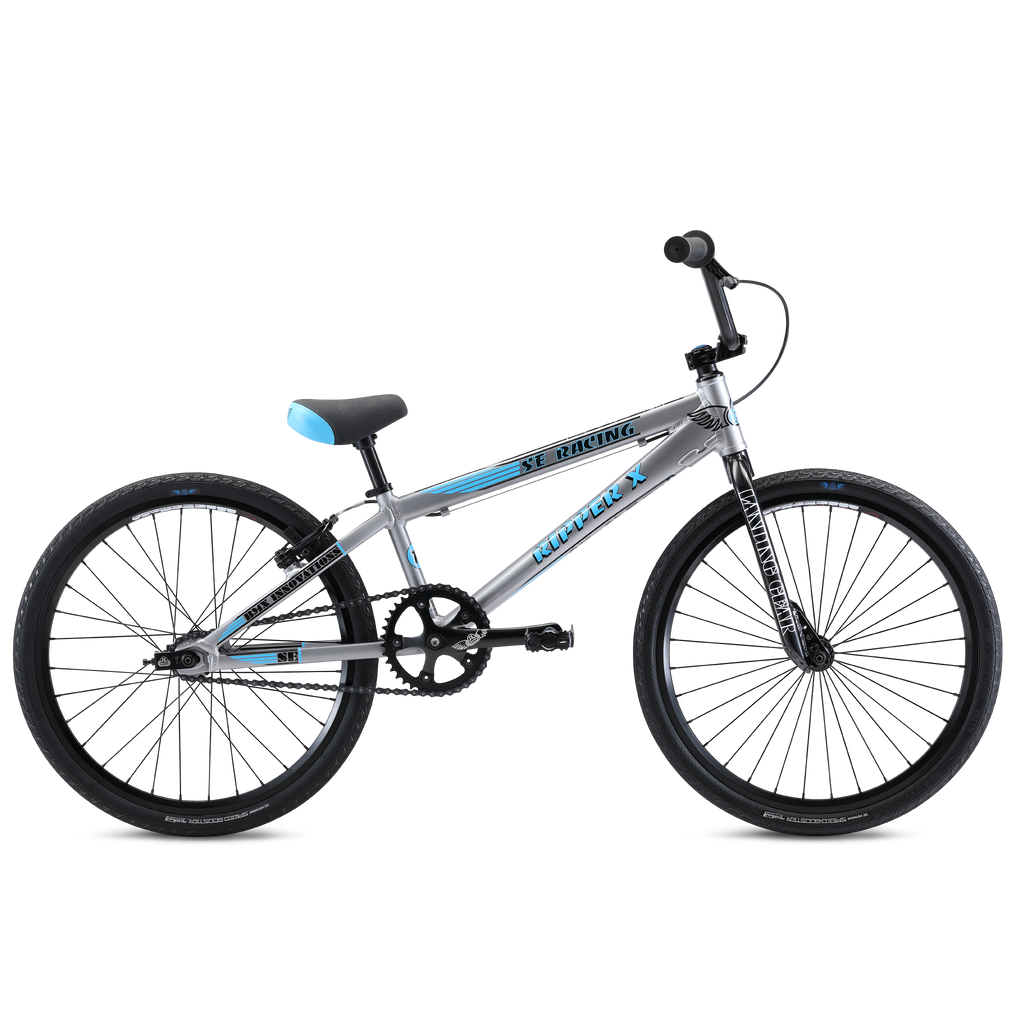

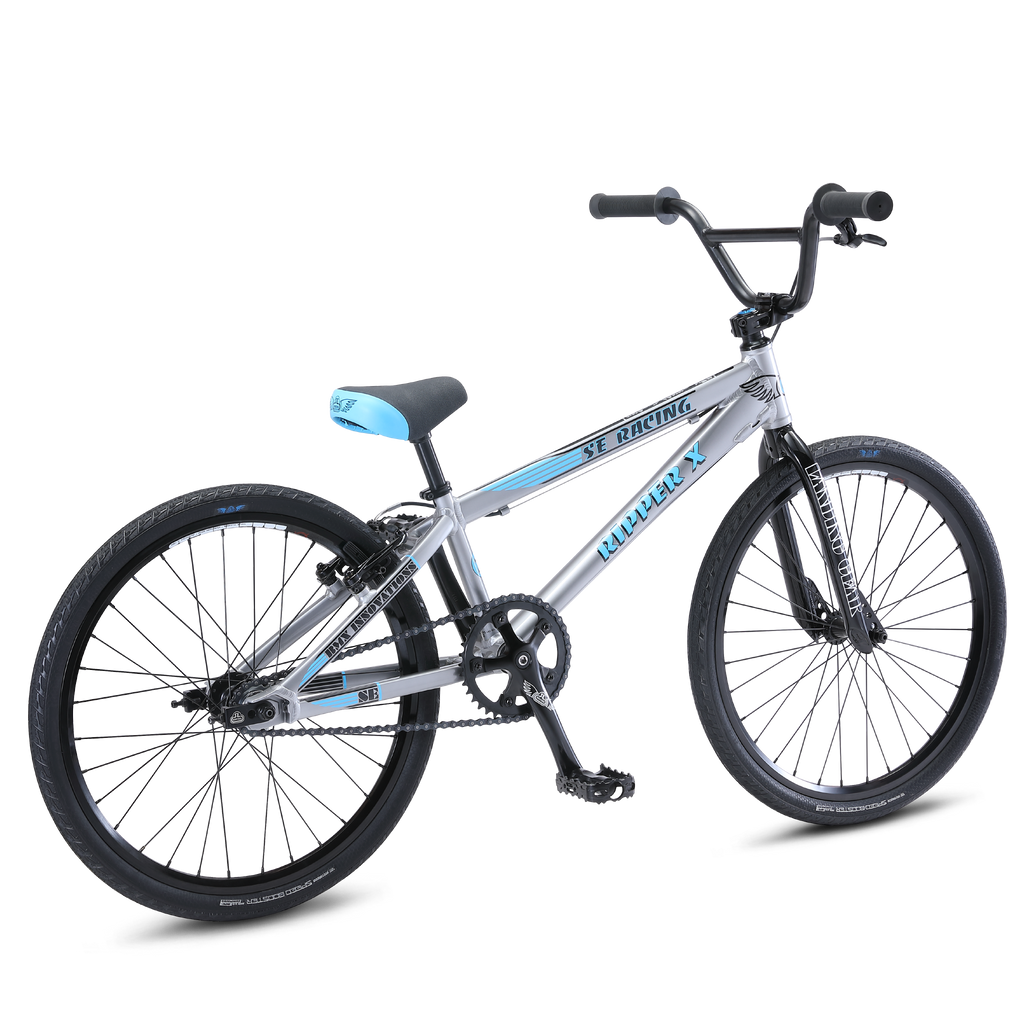

Ripper X
$749.00
$949.00
Description
Built with a super-stiff 6066 aluminum frame featuring a bi-oval downtube and 6066 aluminum Landing Gear forks, this rad ride weighs in at a featherweight 16.9 pounds. Rounding out the package are Alienation Ankle Biter rims, a Promax Impact Mini stem and new Vee Tire Co Speed Booster tires. It's no wonder that the Ripper X is one of the fastest rippers on the track.
KEY FEATURES
- Lightweight 6066 aluminum frame built with floval top tube, bi-oval down tube and rectangular rear stays for maximum stiffness
- Lightweight 6066 aluminum Landing Gear forks with Cr-Mo steerer tube
- Alloy SE Wing bars
- Promax Impact Mini 6061-T6 aluminum CNC stem with hidden top cap for a clean look
- Stiff and lightweight 3-piece 165mm alloy cranks
- Vee Tire Co Speed Booster 1-3/8" tires provide ultra-quick cornering and low rolling resistance
- Alienation Ankle Biter rims built with sealed cassette hubs with lightweight hollow axles
- 16.9 pounds
SPECIFICATIONS
| Suggested Rider Size | 4'6"- 5'3" (137cm-160cm) |
| Colour(s) | Platinum Silver |
| Frame | Lightweight 6066 Aluminum Floval Tubing, Internally Machined Integrated Head Tube, Bi-Oval Down Tube, 68mm Wide BB, Rectangular Seat & Chainstays, 3D-Forged Dropouts |
| Fork | 6066 Alloy Landing Gear, Cr-Mo Steerer Tube |
| Crankset | SE Racing 3-pc Alloy, 165mm, Euro-Sealed Bearing Bottom Bracket, 103mm Spindle Length, 38T Alloy Chainring |
| Pedals | Wellgo Alloy Caged, Cr-Mo Axle |
| Chain | KMC Z1 |
| Wheelset | Sealed Bearing Hollow Axle Alloy Hubs w/ Alienation Ankle Biter Double-Wall, 32H Rims, 15T Cassette, Stainless Spokes |
| Tyres | Vee Tire Co Speed Booster 20" x 1-3/8" Front & Rear |
| Brakeset | Promax P-1 6061 T-6 Alloy V-Brake, Blue Pads, Slick Cable |
| Brake Levers | Promax SE-341, 2-Finger Alloy |
| Headset | Neco Sealed 1" Integrated Headset |
| Handlebar | Alloy SE Wing Bar, 24.5" x 6", 11° Backsweep, 3° Upsweep |
| Stem | Promax Impact Mini 1", 6061-T6 Alloy, CNC Machined Hollowed Out Center, Lightweight External Cutouts, Hidden Top Cap, 45mm Reach |
| Grips | Expert Grips |
| Seat | SE Racing Mini w/ Integrated Alloy Post |
| Seatpost | Integrated Alloy, 22.2mm |
| Seat Clamp | Alloy, 25.4mm Inner Diameter |
| Accessories | SE Chain Tensioners |
| Weight | 16.9 lbs / 7.48 kgs |
| * Specification subject to change without notice |
GEOMETRY
| A | Top Tube, Actual | 19.5" | |||||||||
| B | Seat Tube, Center To Top | 9.1" | |||||||||
| C | Seat Tube Angle | 70° | |||||||||
| D | Head Tube Angle | 73° | |||||||||
| E | Chainstay Length | 13.8" | |||||||||
| F | Wheelbase | 35" | |||||||||
| G | Bottom Bracket Height | 11" | |||||||||
| H | Standover | 22.7" | |||||||||
| Stem | 45mm | ||||||||||
| Handlebar Width | 24.5" | ||||||||||
| Crank | 165mm | ||||||||||
| Wheel Size | 20" | ||||||||||
| Seat Post Diameter | 22.2mm |
STEP-BY-STEP
HOW TO BUILD YOUR NEW SE BIKE!
SE bikes ship partially assembled from the factory. We always recommend that a trained mechanic build your bike, but if you follow this guide and take your time, you can build the bike yourself.
